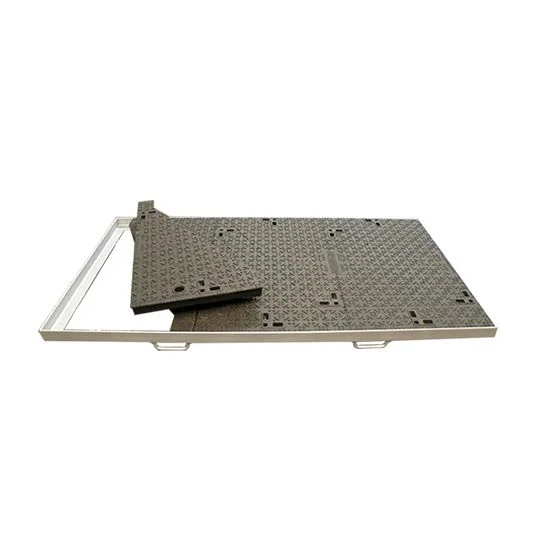

PC Ductile Access Hatch D400 class
Ductile Iron Access Hatches – 400 kN | EN 124-2 Certified
Our ductile iron manhole covers are equipped with solid top covers and a fall safety mesh grating, designed to withstand loads up to 400 kN, fully compliant with the EN 124-2 standard. These access covers ensure durability and long-term performance in demanding environments.
The PC range access covers is specifically engineered for installation in dry network chambers, including telecommunications and fibre optic infrastructures. These access hatches are also suitable for a wide variety of underground structures, offering reliable access solutions.
Triangular covers and non-rock design by means of three-point suspension provide high stability under heavy traffic flow conditions.
Clear opening (mm) : 1/2P2C 531×888 ; P2C 1166×888 ; L5C 1799×888 ; L6C 2433×888 ; M2C 3066×888
Clear opening (mm)
- 1/2P2C 531×888
- P2C 1166×888
- L5C 1799×888
- L6C 2433×888
- M2C 3066×888
Certification
Complies with the requirements of EN-124-2 standard. Third-party certified with TÜV SÜD Industrie Service GmbH mark
Place of use
D400 : Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
Material
Hatch Cover(s) – Spheroidal (ductile) cast iron EN-GJS-500-7.
Finished by water based black paint, environmentally friendly.
Hatch Frame – Steel hot-dip galvanized,
average thickness 90µm according to ISO 1461.
Drawings and dimensions
