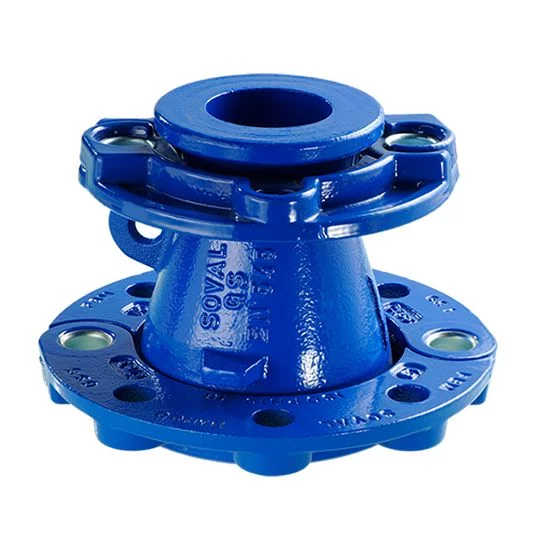

Rotatable flanged fittings taper DN 60 to 300
Enlarge image

Rotatable flanged fittings taper DN 60 to 300

Product description

The rotatable flanged fittings taper DN 60 to 300 is used in drinking water supply, irrigation and sewage drainage systems.

The rotatable flange connection makes it easy to assemble and disassemble installations on either side of the fittings.

Material

Spheroidal Cast Iron GJS 420-5.

Certification

Meet the requirements of EN-545 standard

Download the certificate

Coating

Epoxy paint coating RAL 5005.
Reinforced thickness of 250 microns and ACS approval.

Assembly

Flat gaskets available upon request.
Bolt tightening torque depends on gasket type and nominal pressure.

Product description
Product description

Drawings and dimensions

Table and references

Code
DN (mm)
dn (mm)
L (mm)
e1 (mm)
e2 (mm)
Weight (kg)
PN 10
PN 16
Add in the wishlist
444
60
40
150
8
8
5.5
x
x
445
60
50
150
8
8
6
x
x
446
80
40
150
8.5
8
7
x
x
447
80
50
150
8.5
8
7
x
x
448
80
60
150
8.5
8
7.5
x
x
449
80
65
150
8.5
8
8
x
x
450
100
40
150
8.5
8
7.5
x
x
451
100
50
150
8.5
8
7.5
x
x
452
100
60
150
8.5
8
8
x
x
474
100
65
150
8.5
8
8.5
x
x
453
100
80
200
8.5
8.5
9
x
x
454
125
40
200
9
8
10
x
x
455
125
60
200
9
8
10.5
x
x
475
125
65
200
9
8
11
x
x
456
125
80
200
9
8.5
11.5
x
x
457
125
100
200
9
8.5
12
x
x
458
150
60
200
9.5
8
13
x
x
476
150
65
200
9.5
8
13.5
x
x
459
150
80
200
9.5
8.5
14.5
x
x
460
150
100
200
9.5
8.5
14.5
x
x
461
150
125
200
9.5
9
17
x
x
462
200
100
200
9.5
8.5
19
x
463
200
125
200
9.5
9
21.5
x
464
200
150
200
9.5
9.5
22
x
465
250
100
200
12
8.5
23.5
x
466
250
125
200
12
9
25.5
x
467
250
150
200
12
9.5
28.5
x
468
250
200
200
12
9.5
30.5
x
469
300
150
200
13
9.5
34
x
470
300
200
200
13
9.5
37.5
x
471
300
250
200
13
12
41
x

Assembly of the flanges



The movable flange segments of our fittings are assembled using steel rings for greater resilience.

Reinforced epoxy coating



Epoxy paint coating RAL 5005 and food-grade.

Reinforced thickness of 250 microns and ACS approval.
