VFTE gasket kit Souplessur-T
Enlarge image

VFTE gasket kit Souplessur-T

Product description

The SOUPLESSUR-T VFTE gasket kit is used to connect SOUPLESSUR-T fittings to ductile cast iron pipes.

Material

Bolted gland and locking ring : spheroidal Cast Iron GJS-500-7.
Souplessur gasket : EPDM food-grade (according to EN 681-1).
Fasteners : Screws steel class 8.8 coated GEOMET-500 grade B with cast iron nuts.

Certification

Meet the requirements of EN-545 standard

Download the certificate

Coating

Epoxy paint coating RAL 5005.
Reinforced thickness of 250 microns and ACS approval.

Assembly

Assembly instructions are included with each kit.

Product description

Souplessur-T VFTE gasket kit for ductile iron pipes

Product description

Drawings and dimensions

Table and references

Code
DN (mm)
bolts/kit
lk (mm)
Range (mm)
Range (kg)
PFA10
PFA16
Add in the wishlist
24849
100
3xM18-90
60
115 - 119
4.1
X
X
29616
125
3xM18-90
65
141 - 145
7
X
X
24850
150
3xM18-90
60
167 - 171
5.2
X
X
24851
200
4xM20-100
65
219 - 223
8.8
X
X
35972
250
6xM20-100
70
271 - 275
16
X
X
35973
300
6xM20-100
70
323 - 327
19
X
X

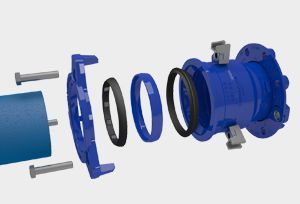

Mechanical joint fitting

Thanks to its self-locking screw and nut system on the body shoulder, tightening is easily accessible, whatever the configuration of the installation in the pit.

Reinforced epoxy coating



Food-grade RAL 5005 epoxy paint

Reinforced thickness of 250 microns and ACS approval.
