Extension spindle
Enlarge image

Extension spindle

Product description

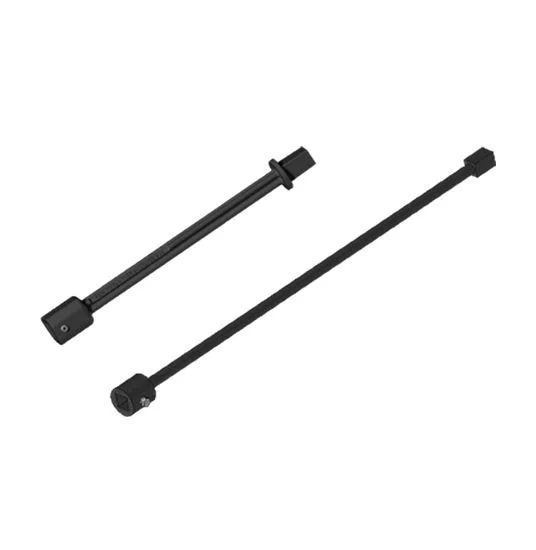

This tool is particularly suitable for handling gate valves with operating square cap.

Place of installation

Ref.135 : Protection tube with socket end for mounting on tabernacle (support)
and bell base.
Ref.136 : Protection tube with collar for mounting on tabernacle (support) square plate.

Material

Cast iron GJS for lengths 0.3m and 0.5m
Steel for other lengths

Coating

Water based black paint or epoxy RAL 5005 topcoat.

Blocking screw

Socket set screw with cone point for lengths 0,3m à 0,5m
Hex. head 8.8 for others lengths

Product description
Product description

Drawings and dimensions

Table and references

Code
Blocking screw
L (mm)
A (mm)
ØB (mm)
C (mm)
DxD (mm)
ExE (mm)
Weight (kg)
Add in the wishlist
6791
Socket set screw with cone point
0.3
54
56
50
30 x 30
30 x 30
2.1
6792
Socket set screw with cone point
0.5
54
56
50
30 x 30
30 x 30
3
6803
Hex. head 8.8
0.6
54
56
50
30 x 30
30 x 30
2.9
6805
Hex. head 8.8
1
54
56
50
30 x 30
30 x 30
4.7
6808
Hex. head 8.8
1.25
54
56
50
30 x 30
30 x 30
4.6
6796
Hex. head 8.8
1.5
54
56
50
30 x 30
30 x 30
6.8
6789
Hex. head 8.8
2
54
56
50
30 x 30
30 x 30
8.3
6785
Hex. head 8.8
3
54
56
50
30 x 30
30 x 30
12

Made in France



Leader in service connection devices, SOVAL surface box units and extension spindles are exclusively designed and produced in France at the “Fonderies de Brousseval et Montreuil” (F-52).
