Hight security access cover VIGI

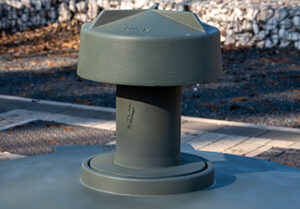

Supplied with or without its chimney, the high Resistance cast iron SECUR-IT VIGI access cover can be installed on catchment chambers, pumping stations, tanks, deaerators etc.
Main features
Lift assistance at the opening
High security Lock
With chimney or full plate
Material
Cover, frame and chimney:
Spheroidal cast iron GJS 420-5
High security Lock: Stainless steel
Gasket: EPDM
Fasteners: Stainless steel
Coating
Cover, frame and chimney:
Metallization and polyester coating RAL 7009
Options
Intrusion detection sensor (Ref: 37529)
Stainless steel retention tank
(see datasheet : «BAC-INOX»)
Fixing kit (Ref.: 37531)
SOVAL - Security access cover VIGI
Drawings and dimensions
Table and references
Code
Version
Chimney
Locking
ØO (mm)
ØD (mm)
ØC (mm)
ØB (mm)
ØA (mm)
E (mm)
h (mm)
H (mm)
Total (kg)
Add in the wishlist
High Resistance cast iron SECUR-IT
The complete equipment VIGI, frame, cover, chimney is molded in a specific cast iron specially designed to be ultra-resistant and anti-drilling.
VIGI is Burglar-Resistant Approved RC4 and Certified by CNPP (French Lab) according to EN 1627 & EN 1630.
*CNPP : Entreprise provides security services. The Company offers risk prevention and control for fire & explosion, cybersecurity, environmental damage, and malice sectors, as well as training, certification, testing, and assistance services. CNPP Entreprise serves customers worldwide.

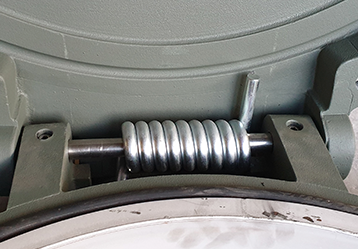

Lift Assistance
A spring set up on the secure hinge provides lifting assist for opening and closing.

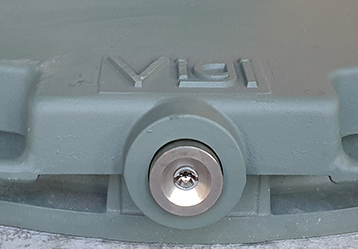

Safety lock
Opening and closing by high security lock :
- Euro cylinder
- Others: consult us
Intrusion detection sensor
Consult us

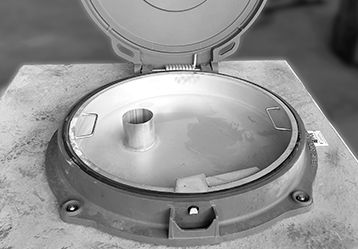

Stainless steel retention tank
The stainless steel retention tank prevents solid or liquid residues from falling into the collection point. Aeration is done only through the off-center aeration tube.
