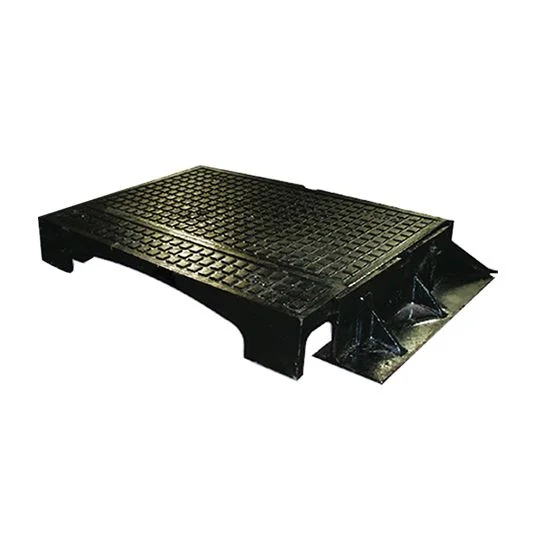

Kerb gully covers ref.306 and ref.308 - 250 KN
Enlarge image

Kerb gully covers ref.306 and ref.308 – 250 KN

Product description

The kerb gully unit ref.306 and ref.308 250kN made of EN-GJS cast iron collects rainwater and runoff at kerbside. Available in T profile.

Material

Spheroidal cast iron EN-GJS-500-7.
Water based black paint.

Loading

125 kN

Product description
Product description

Drawings and dimensions

Table and references

Code
Description
Version
Clear opening (mm)
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (mm)
H (mm)
Absorption surface (dm2)
Weight (kg)
Surface (kg/m2)
Add in the wishlist
7796
306
2 Cover
991 x 545
780
1060
200
160
580
200
730
20
9.2
97
264
10975
306
3 Right side support
992 x 545
780
1060
200
160
580
200
730
20
9.2
35
264
10974
306
4 Rear support
993 x 545
780
1060
200
160
580
200
730
20
9.2
58
264
10976
306
5 Left side support
994 x 545
780
1060
200
160
580
200
730
20
9.2
35
264
10977
308
2 Cover
1381 x 455
670
1445
290
180
490
200
1420
20
14
126
400
10979
308
3 Right side support
1382 x 455
670
1445
290
180
490
200
1420
20
14
34
400
16948
308
4 Rear support
1383 x 455
670
1445
290
180
490
200
1420
20
14
92
400
10978
308
5 Left side support
1384 x 455
670
1445
290
180
490
200
1420
20
14
34
400
