PCVAA access cover D400 class
Equipped with solid top cast iron cover and a steel frame in D400, PCVAA locked hinged and lift assisted access cover range is designed for installation on dry networks chambers such as telecom or fiber optic networks, or on underground structures.
Comes as standard with a ¼ turn lock device.
Triangular covers and non-rock design by means of three-point suspension, high stability in heavy traffic flow conditions.
Main features
¼ turn lock device with stainless steel H22 hex. head.
Hardware and fasteners made of stainless steel.
Steel gas strut.
Safety blocking device to prevent accidental cover closure.
Place of use
D400 : Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
Certification
Complies with the requirements of EN-124-2 standard. Third-party certified with TÜV SÜD Industrie Service GmbH mark.
Material
Hatch Cover(s) – Spheroidal cast iron EN-GJS-500-7.
Finished by water based black paint, environmentally friendly.
Hatch Frame – Steel hot-dip galvanized,
average thickness 90µm according to ISO 1461.
Options
Other ¼ turn lock head on request.
SAE patented burglar-proof lock device.
Stainless steel hatch frame.
Stainless steel gas strut.

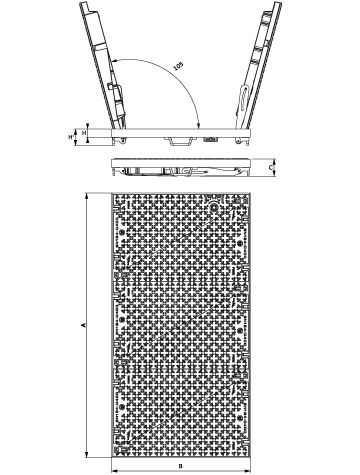

Drawings and dimensions
