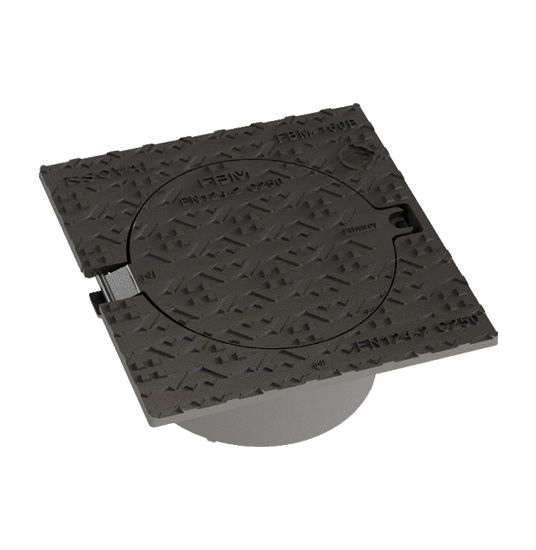

Connection box Nr 160 bis C250 class
160 BIS is a hinged single seal connection box made of cast iron C250, square monobloc frame, top flange as cast for PVC pipes 315mm.
Place of use
For PVC pipes 315mm.
C250 : For gully tops installed in the area of kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0,5m into the carriageway and a maximum of 0,2m into the footway.
Certification
Complies with the requirements of EN-124-2 / NF-110 standard.
Third-party certified with Afnor NF mark
Material
Cover and frame : Spheroidal cast iron EN-GJS-500-7.
Water based black paint.
Gasket : EPDM.
Options
Custom logo
Identification of underground networks using colored EPDM pads.
Verrouillage et étanchéité
Drawings and dimensions
