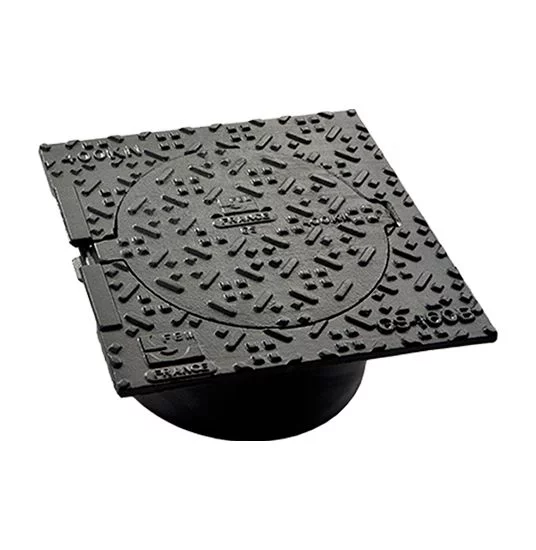

Connection box Nr 160 BIS 400kN
160 BIS is a hinged single seal connection box made of cast iron 400kN, round monobloc frame,
top flange as cast for PVC pipes 315mm.
Place of use
For PVC pipes 315mm.
400 KN: Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
Material
Cover and frame: Spheroidal cast iron EN-GJS-500-7.
Water based black paint.
Options
Logo EU (Eaux Usées) or EP (Eaux Pluviales) on frame.
SBR gasket.
Drawings and dimensions
