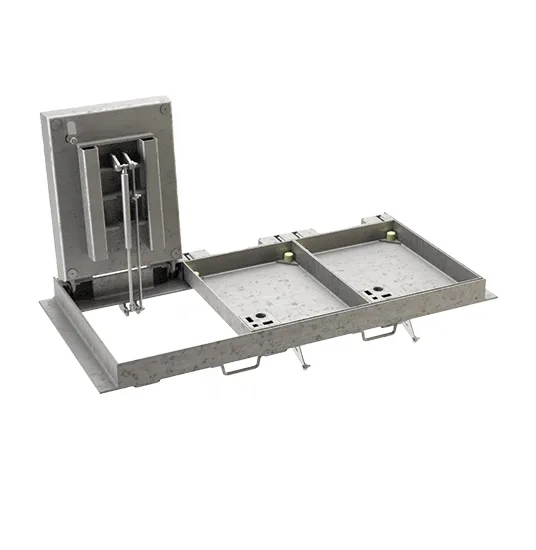

Hinged Assisted Fabricated Steel Recessed Manhole Cover LTRVAA 400kN for Concrete Infill
Fabricated Steel Recessed Access Covers for Infill – 400 kN | EN 124-3 | Galvanized Steel EN ISO 1461
Our fabricated steel access cover is manufactured from steel hot-dip galvanized in accordance with EN ISO 1461 for enhanced corrosion resistance and long-lasting durability. Rated to withstand loads up to 400 kN slow traffic flow, this access hatch complies fully with the EN 124-3 standard.
This recessed tray access cover is specifically engineered for block paving and infill applications, allowing seamless integration into surrounding surfaces for a discreet and aesthetic finish. It is ideal for urban environments where visual continuity is essential.
The LTRVAA range features a locked, hinged, and lift-assisted access cover system, ensuring safe and easy handling during maintenance operations. It is particularly suited for installation in dry network chambers, including telecommunications and fibre optic networks, as well as all types of underground structures.
Each access hatch is supplied as standard with a ¼ turn locking device, providing secure closure, quick access, and enhanced operational efficiency.
Recess depth 80 mm
Clear opening (mm) : L1T 528×498 ; L2T 1187×394 ; L3T 1490×528 ; 1/2L4T 993×528
Clear opening (mm)
- L1T 528×498
- L2T 1187×394
- L3T 1490×528
- 1/2L4T 993×528
Place of use
400 kN : slow traffic flow (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
Material
Steel hot-dip galvanized, average thickness 90µm according to ISO 1461.
Options
Handling tools.
Other ¼ turn lock head on request.
Fall safety equipment.
Remarks
Gas strut assist lift
Delivered without concrete
Covers equipped with EPDM soundproofing pads
Recess depth 80 mm
